Garrett G25 Turbocharger Kit

  • Sale
  • Regular price £3,250.00

TB Developments are proud to offer a full bolt on kit for the new Garrett G25 range of turbochargers, 100% developed and built in house in the UK, using the best materials we can obtain to build what we believe is one of the best quality and comprehensive kits on the market place today.

This is a full kit including the turbocharger to allow you to fit the brand new design from garrett the kit includes.

  • Garrett Turbocharger, in choice of 550 or 660 models with all turbine housing options available.

  • Tial 44mm V-band MVR wastegate, in choice of colours available from Tial. Polished, Black, Blue, Red, Purple. These also include a huge range of pressure springs to set your base pressure.

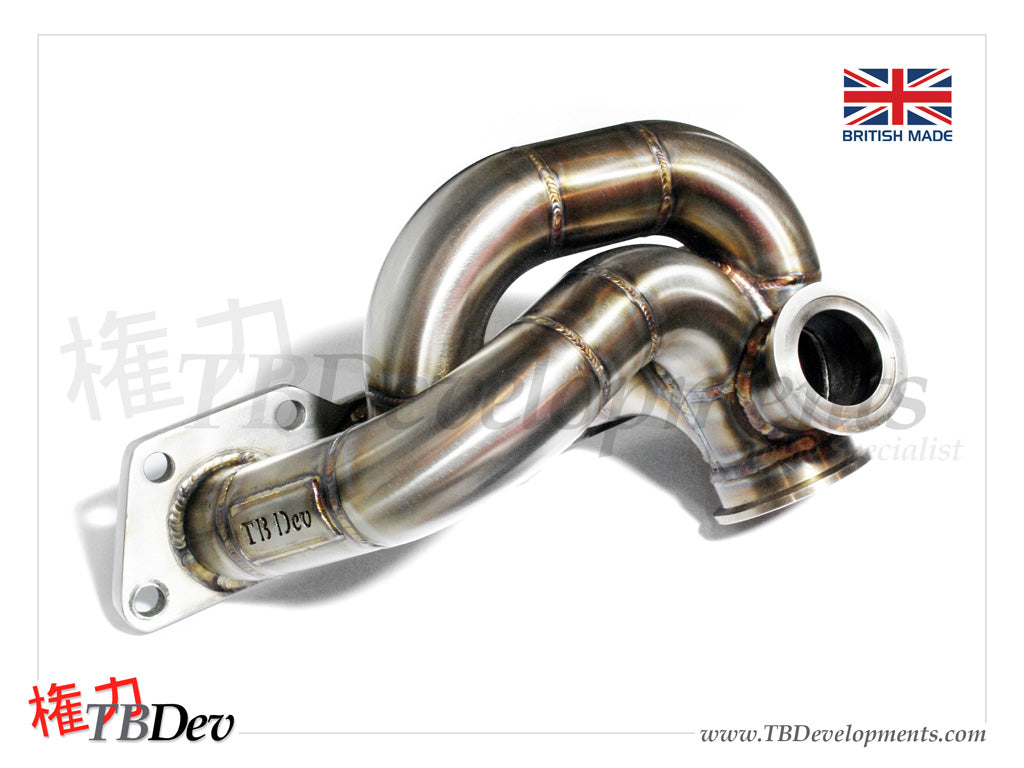

  • Tubular manifold built using 316 Stainless Steel in a 3.2mm thick-wall tubing, Thick stainless steel flanges

  • A unique brace system to support the weight, incorporates a polished heat shield and rose jointed support ram down to a stainless heavy duty block support

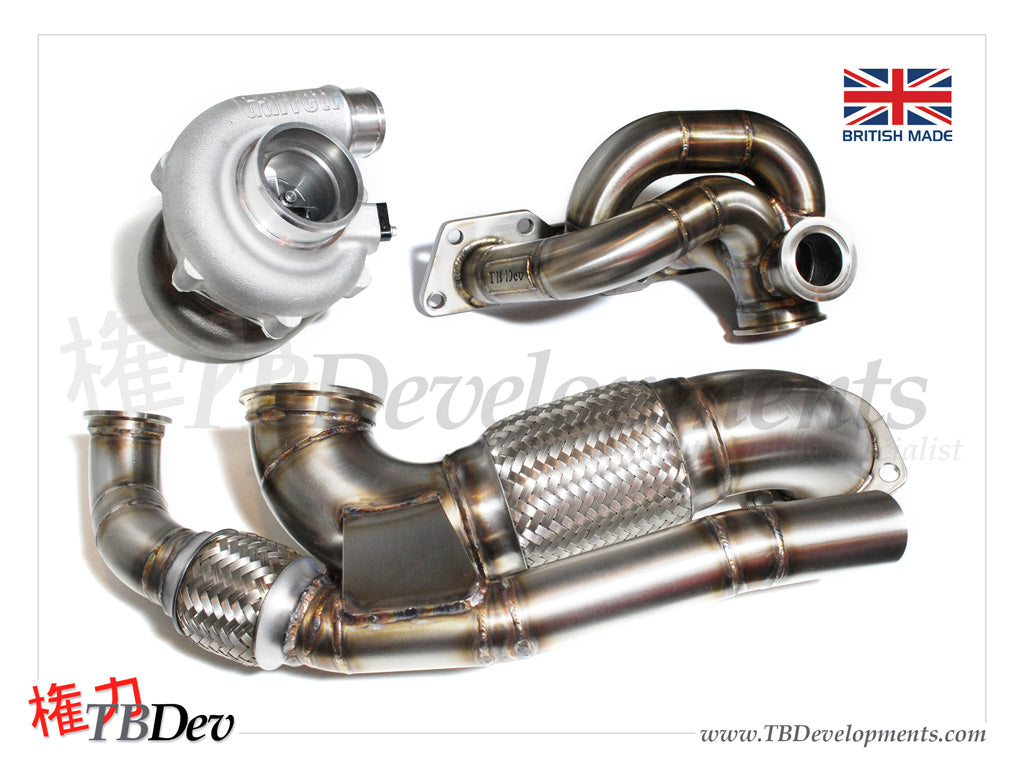

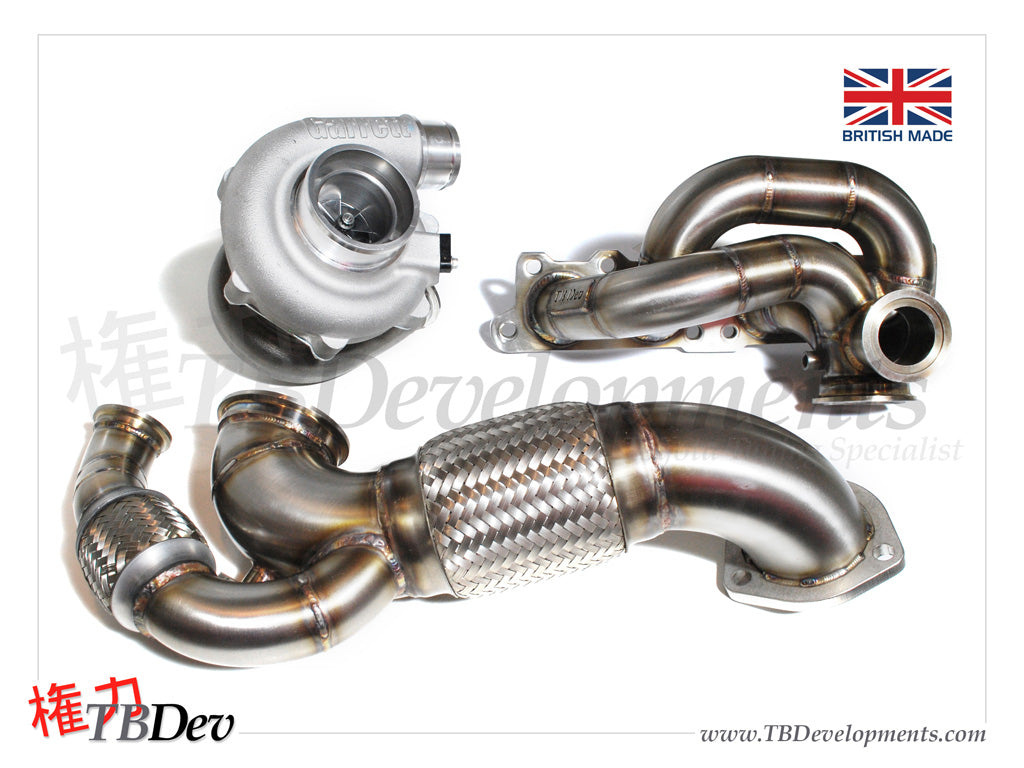

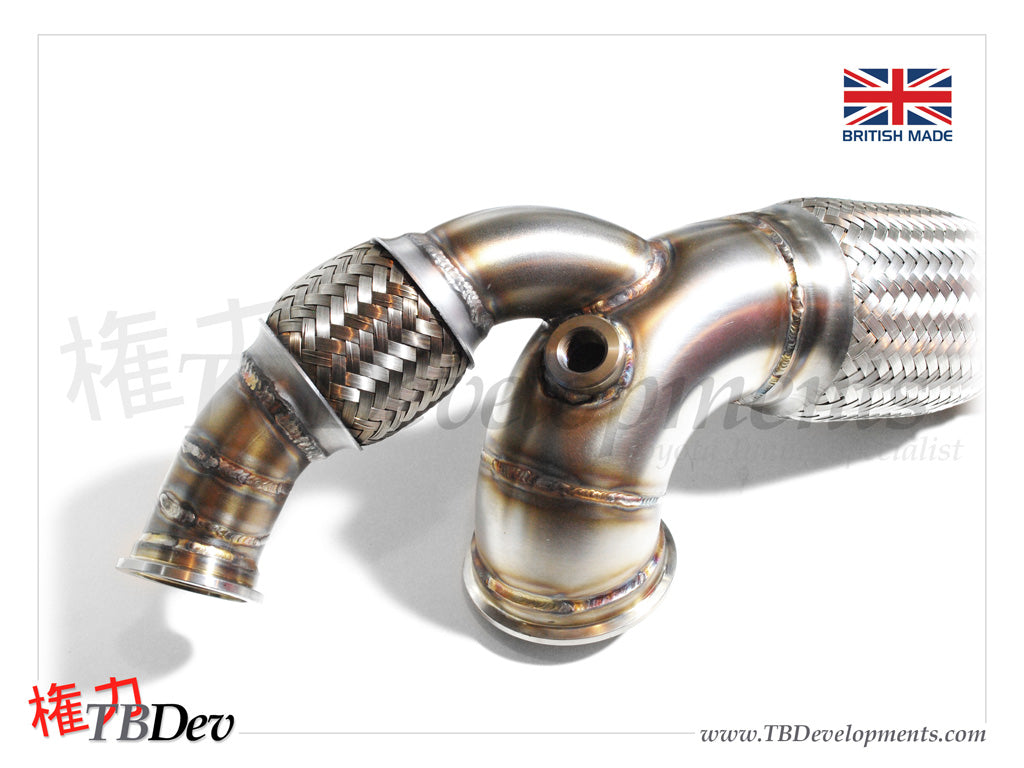

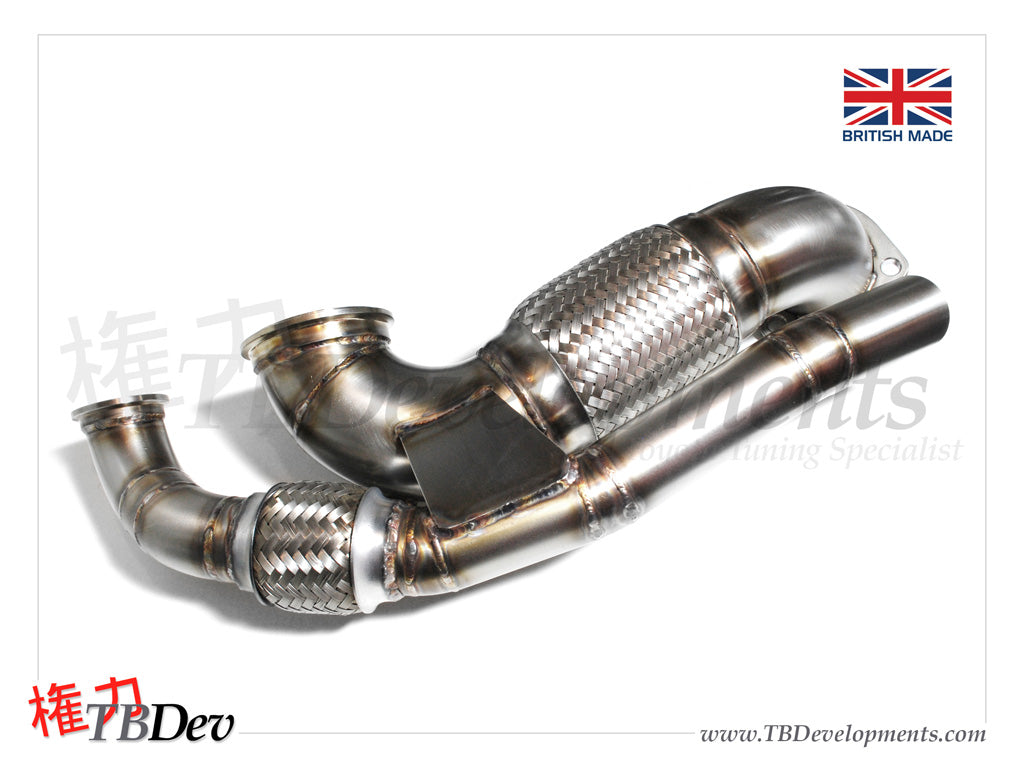

  • Full 316 Stainless steel V-Band downpipe using a flexible section to account for vibration and thermal expansion, Comes with either a rerouted or screamer pipe external wastegate dump tube.

  • All Oil and Coolant lines in Stainless Hose with black overbraid. The Oil Feed Line is a high quality swaged AN-04 hose, where the Coolant and Oil Drain use a motorsport type AN fitting in either the typical Red/Blue, or Stealth.

  • Unique clocking system to allow the turbocharger compressor outlet to be rotated in any angle for ease of installation to meet up to your existing intercooler pipe work

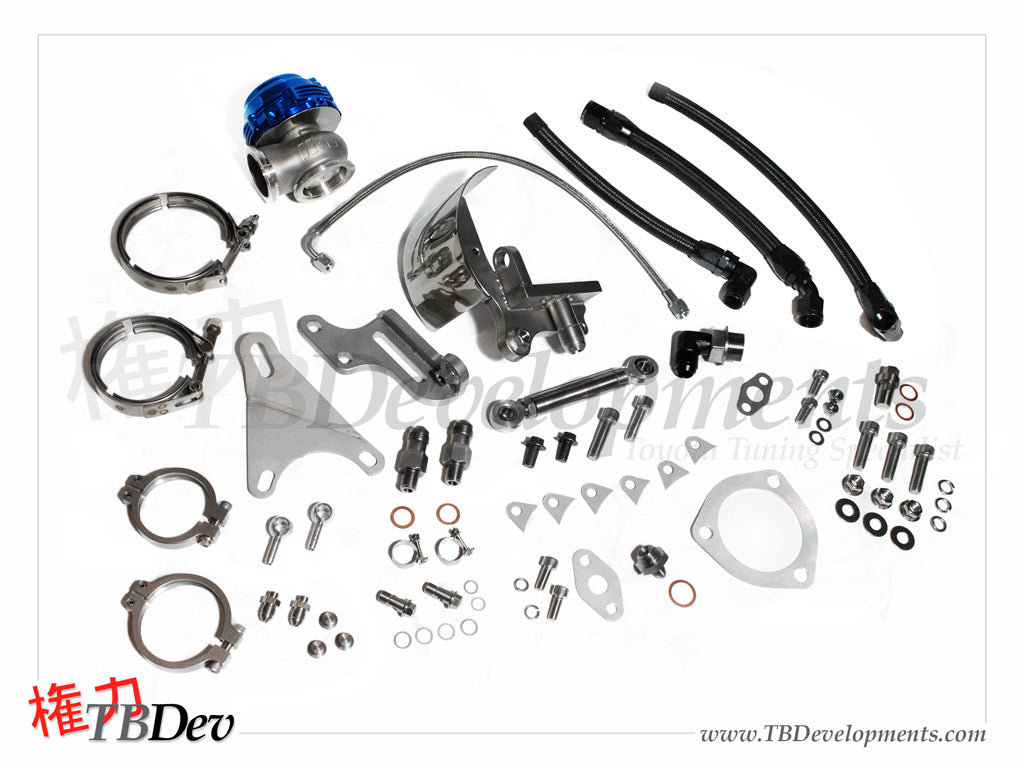

  • All fixings, bolts, gaskets for installation.

All extra options (wastegate colour, turbine .ar, hose fitting type etc.) will be confirmed after the order has been placed.
