PRODUCT DESCRIPTION:

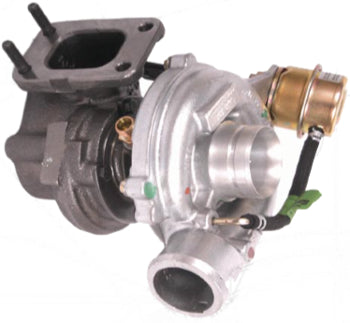

Garrett GT2052 journal bearing turbocharger. Supports over 200HP potential flow. Available in two compressor wheel trims.
Features include small frame, internally wastegated, and oil cooled CHRA rotating assembly (no water ports).
Please choose specific Garrett part number.
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 37.6mm (Part #727264-1); 36.1mm (Part #727264-3)
* Compressor Wheel Exducer: 52.2mm
* Compressor Wheel Trim: 52 (Part #727264-1); 48 (Part #727264-3)
* Compressor Housing A/R: 0.51
* Turbine Wheel Inducer: 47.0mm
* Turbine Wheel Exducer: 39.9mm
* Turbine Wheel Trim: 72
* Turbine Housing A/R: 0.50
