PRODUCT DESCRIPTION:

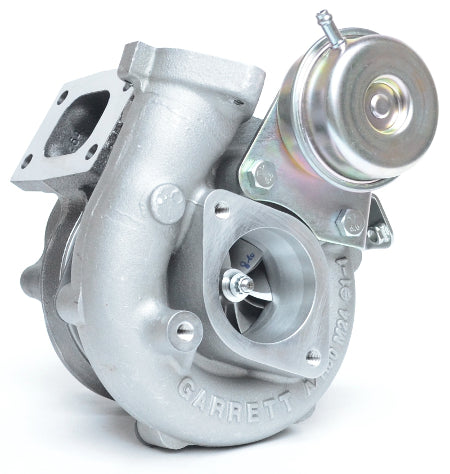

Dual Ball Bearing Garrett GT2560R (aka GT28R) Turbo. Excellent responding turbo for 4 cylinder applications. The Garrett GT2560R has a flow capacity of approximately 310HP.
Available with internally gated or externally gated turbine housing options. Internal Wastegate Actuator & bracket ONLY included with internally gated turbine housing options.
NOTE: Internal wastegate is NOT included with externally gated v-band inlet and v-band outlet turbine housing.
COMPRESSOR INFORMATION:
- Compressor Wheel: 60mm w/ 60 trim
- Compressor Map
COMPRESSOR HOUSING OPTIONS:
- Standard GT2560R (aka GT28R) .60 A/R
- Optional compact GT2554R (aka GT25R) .80 A/R
TURBINE INFORMATION:
- Turbine Wheel: 53mm w/ 62 trim
- Turbine Map
