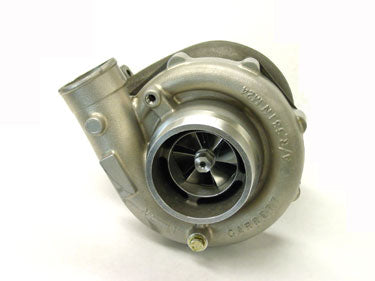

Garrett's latest Dual Ball Bearing GT4094R Turbo assembly. T4 style divided inlet flange with 3" V-BAND exit. Now available in T3 Undivided Entry with option to modify to V-band Entry. Please choose Turbine Housing Style and A/R.Large style compressor housing with 4.00" inlet and 2.50"outlet. Great upgrade path (direct fit) for a GT4088R application or any new high HP application that desires the compact package. Good for up 850HP with great top end power and best spoolup for the power range.
Turbine
-Wheel: 77mm w/ 78trim
-T4 Housing: .85, .95, 1.06 or 1.19 A/R
-T3 Housing: .89, .99, or 1.11 A/R
-Maps: Not Available
Compressor
-Wheel: 94mm w/ 52 trim
-Housing: .72 ar
-Maps
Turbine
-Wheel: 77mm w/ 78trim
-T4 Housing: .85, .95, 1.06 or 1.19 A/R
-T3 Housing: .89, .99, or 1.11 A/R
-Maps: Not Available
Compressor
-Wheel: 94mm w/ 52 trim
-Housing: .72 ar
-Maps
