PRODUCT DESCRIPTION:

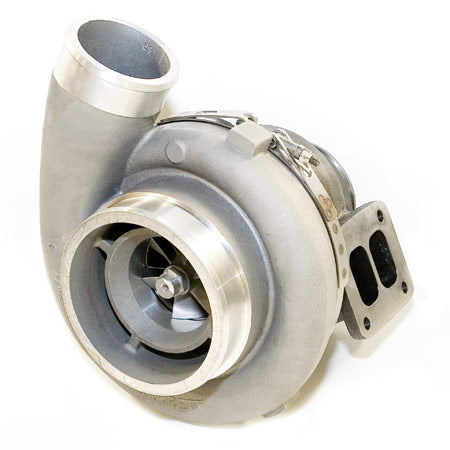

Ball Bearing Garrett GT4508R (aka GT45R) Turbo. Capable of approximately 1200HP!
Compressor wheel diameter is 108mm exd. / 80.8mm ind. (56trim) Compressor housing is .69 A/R has a 6" inlet and 3.5" outlet slip on connection.
Turbine housing uses a T4 divided inlet and 4" V-band outlet.
TURBINE:
-Wheel: 87.0mm w/ 85 trim
- T4 Divided Housing Options: 1.01, 1.15, 1.28, 1.44 A/R
- Tial Stainless Steel Options ($400 additional): 1.02, 1.16, 1.30 A/R
-Maps
COMPRESSOR:
-Wheel: 108.0mm exd./80.8mm ind w/ 56 trim
-Housing: .69 A/R (Optional: Compact GT42R/GT42RS Compressor Housing Available)
-Maps
