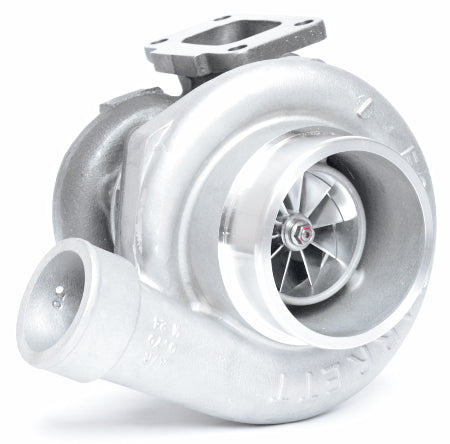

GTW3684JB (aka GTW6262JB) journal bearing turbo. 750HP potential flow.
GTW Series - Garrett's Performance solution to the popular 6262 size turbo. Great performance at a competitive price!
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 62.3mm
* Compressor Wheel Exducer: 84.4mm
* Compressor Wheel Trim: 54
* Turbine Wheel Inducer: 71.0mm
* Turbine Wheel Exducer: 61.9mm
* Turbine Wheel Trim: 76
* Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
