PRODUCT DESCRIPTION:

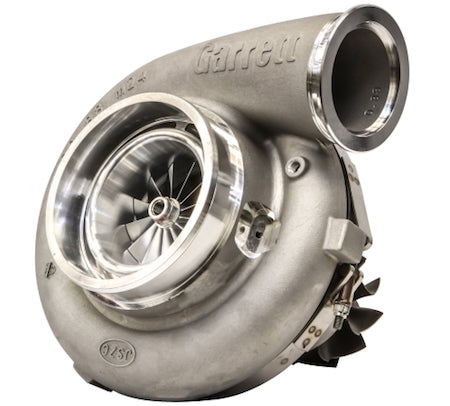

Garrett GEN2 GTX5533R (85mm) dual ball bearing turbocharger (turbine housing sold separately). Designed for race classes limited to a 85mm compressor wheel inducer.
PRODUCT FEATURES:
Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Machined speed sensor port
Light weight billet backplate
Oil cooled bearing housing (no water ports)
Dual ball bearing CHRA rotating assembly
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 85/88/91/94/98mm
Compressor Wheel Exducer: 133mm
Compressor Wheel Trim: 41
Compressor Housing A/R: 0.88
Turbine Wheel Inducer: 112mm
Turbine Wheel Exducer: 102mm
Turbine Wheel Trim: 84
