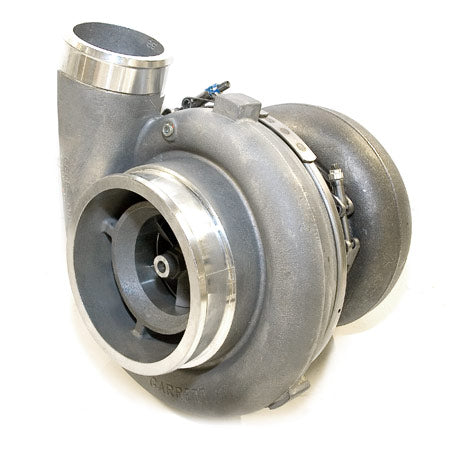

Turbo, Ball Bearing Garrett GT4708R (aka GT4780-R) . Capable of close to 1200HP! Compressor
wheel diameter is 108mm exd. / 80.8mm ind. (56trim) Compressor housing is .69 A/R has a 6"
inlet and 3.5" outlet slip on connection. Turbine housing uses a T6 undivided inlet and 5" V-band
outlet. Available Turbine housing A/R: 1.08, 1.23, and 1.39
Turbine
-Wheel: 92.7mm w/ 82 trim
-Housing: .96, 1.08, 1.23, 1.39 A/R
-Maps
Compressor
-Wheel: 108.0mm exd./80.7mm ind w/ 56 trim
-Housing: 0.69 A/R
-Maps
wheel diameter is 108mm exd. / 80.8mm ind. (56trim) Compressor housing is .69 A/R has a 6"
inlet and 3.5" outlet slip on connection. Turbine housing uses a T6 undivided inlet and 5" V-band
outlet. Available Turbine housing A/R: 1.08, 1.23, and 1.39
Turbine
-Wheel: 92.7mm w/ 82 trim
-Housing: .96, 1.08, 1.23, 1.39 A/R
-Maps
Compressor
-Wheel: 108.0mm exd./80.7mm ind w/ 56 trim
-Housing: 0.69 A/R
-Maps
