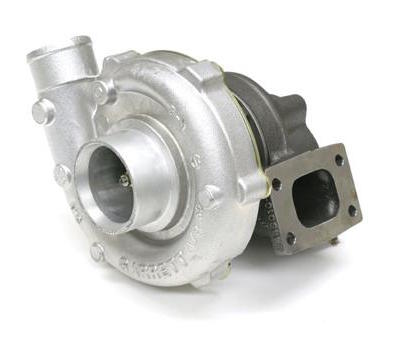

Garrett GT3071r-wg

  • Sale
  • TBC
Dual Ball Bearing GT25/40-R Turbo assembly with specified ar. T25 style inlet flange with 5 bolt style exit. Large 60- 1 style compressor housing with 4.00" inlet and 2.50" outlet. Very Good response turbo for 4 Cyl applications. This turbo has a flow capacPRODUCT DESCRIPTION:
The Garrett GT3071R-WG is based on the HIGH flowing and larger framed Garrett GT3071R, but conveniently available in the same style T25 turbine housing as the popular Garrett GT2860RS/GT28RS/GT2871R turbochargers. The GT3071R-WG has a unique turbine wheel trim and compressor housing.

The GT3071R-WG includes a standard T04E frame compressor housings (alternate options available), which is larger than the GT2860RS/GT28RS and GT2871R compressor housing. Alternate compact compressor housing options enable a direct drop-in upgrade to GT2554R (GT25R), GT2560R (GT28R), GT2860RS (GT28RS), or GT2871R turbochargers.



Turbine
-Wheel: 56.5mm w/ 84 trim
-Housing: 0.64 a/r
-Internally Wastegated (No Actuator)
-Maps: Not Available

Compressor
-Wheel: 71mm w/ 56 trim
-Housing: .50 a/r
-Maps: Not Available
-Inlet: 2.75"ity of about 450HP.

Turbine
-Wheel: 53.9mm w/ 76 trim
-Housing: .64 ar, .86 ar
-Maps

Compressor
-Wheel: 76mm w/ 48 trim
-Housing: .70 ar
-Maps
