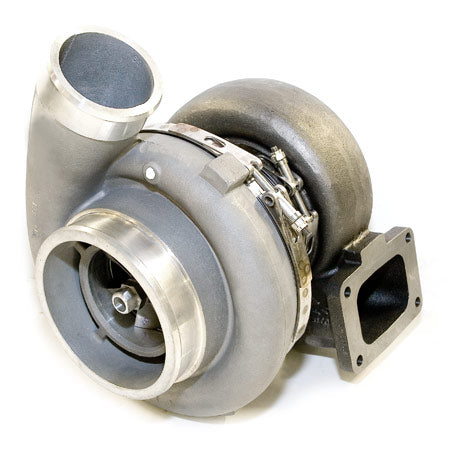

Turbo, Ball Bearing Garrett GT5533R (aka GT55R) . Capable of close to 1600HP! Compressor wheel diameter is 133mm exd. / 91.2mm ind. (47trim) Compressor housing is .69 A/R has a 6" inlet and 3.5" outlet slip on connection. Turbine housing uses a T6 undivided inlet and 5" V-band outlet.
Turbine
-Wheel: 111.4mm w/ 84 trim
-Housing: 1.0, 1.12, 1.24, 1.40 A/R
-Maps
Compressor
-Wheel: 133.0mm exd./91.2mm ind w/ 47 trim
-Housing: .69 A/R
-Maps
Turbine
-Wheel: 111.4mm w/ 84 trim
-Housing: 1.0, 1.12, 1.24, 1.40 A/R
-Maps
Compressor
-Wheel: 133.0mm exd./91.2mm ind w/ 47 trim
-Housing: .69 A/R
-Maps
